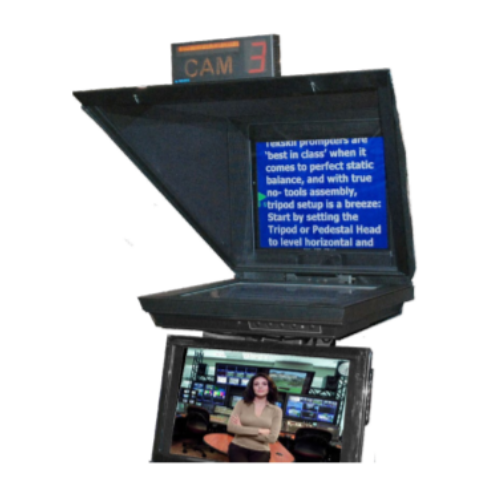

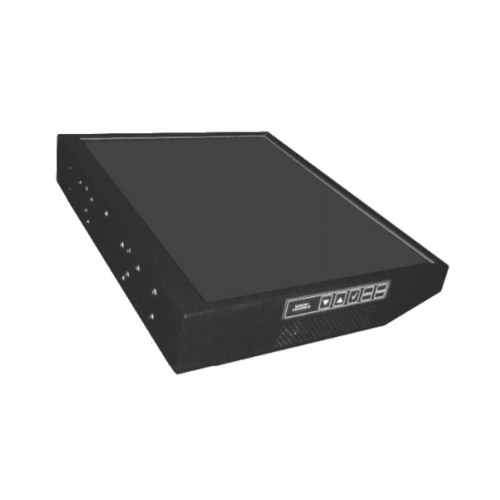

Studio Replacement Prompter Monitors 19″ (19B & 19P)


See why Tekskil Replacement Monitors can save you money

Most LCD prompting systems in use today are more than six years old, and, unlike fine wine, they do not get better with age. High voltage breakdown in the inverters, poor contrast, and fading lamps add up to a prompter your talent strains to read. First and second generation LCD
panels are failing because of old backlight technology causing loss of contrast and very low brightness. Tekskil Replacement Monitors incorporate a high bright LED backlit display with twin cooling fans and DC power management, all housed in a rugged welded aluminum
enclosure.

Features:

  • Enhanced contrast and panel brightness
  • Rugged enclosure. Ready for active studio environments

Documents & Downloads

Specifications:

Diagonal Screen Size (H x V): 19 inches (14.8″ x 11.9″)

Pixel Format (RGB): 1280 x 1024 (Native)

19B LED Backlight Brightness: 550+ cd/m2

19P LED Backlight Brightness: 1000+ cd/m2

Contrast Ratio: 2000:1

19B Viewing Angle (H/V): 150º / 150º minimum

19P Viewing Angle (H/V): 170º / 170º minimum

Composite Video (CVBS) Input: BNC (x1)

3G/SD/HD-SDI Input: BNC (x1)

Weight: 8 lbs.

LED Lamp Life: 60,000+ hours

12 VDC Input: Industry Standard XLR 4-Pin Male

19B Power Consumption: 40 W @ full brightness

19P Power Consumption: 45 W @ full brightness

Warranty: 3 year
