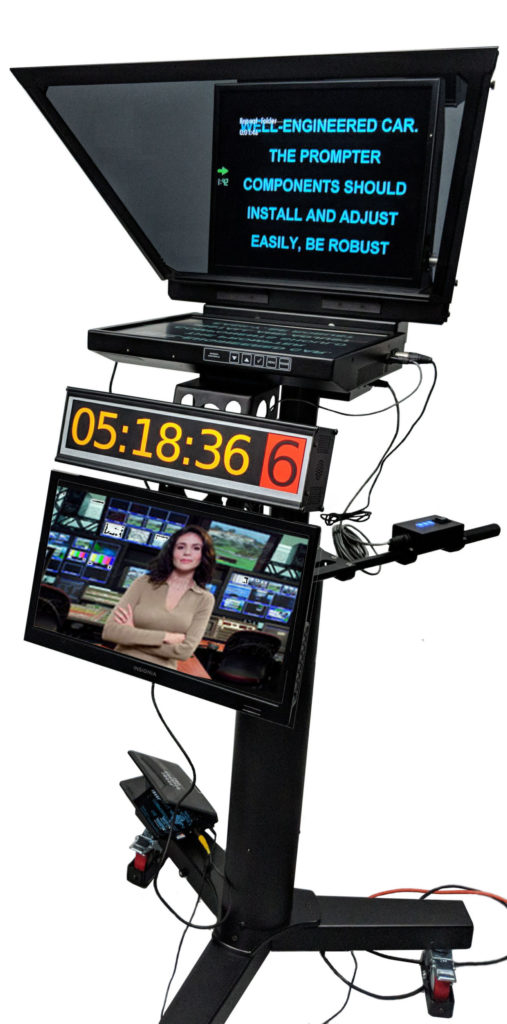

Network Integrated PTZ Camera Robotic Prompter System

More and more stations are adopting automation for improved production and reduced costs. A new breed of integrated pan/tilt/zoom cameras has emerged PTZs. Utilizing miniature pan tilt assemblies with compact high performance cameras, PTZ systems provide broadcast quality video at a very reasonable cost. However, they come with a headache – how do you integrate a teleprompter for the talent? And how do you communicate to the talent when the Cameraman is in the Control Room? Tekskil fills this need with the development of the Integrated Network Teleprompter System.

PTZ26 Prompter Capsule (Q30)

− Houses the PTZ camera

− 70:30 panoramic beamsplitter

− 24-foot field of view at 10-foot distance


Floor Manager (TA40)

− 3-stage tally (Preview/Program/Special)

− Alphanumeric Selectable Camera ID

− Clock, Dual Count-down & Count-up timers

− Ad hoc messaging

− Tekskil Network Control application


Talent Assist/Aux Display (TA38)

− 19” LED backlit display

− Composite / HDMI video input

− 3G/HD/SD-SDI video input


Network Control

− Network Control Hub/Proxy Server for Panasonic AW-RP150 PTZ Controller and AW-UE150 Cameras

− Tekskil Network Control Application with Graphical User Interface and Touchscreen Joysticks


Electronic Viewfinder/Test Signal Monitor

− 19” LED backlit display

− Composite & HDMI video input

− 3G/HD/SD-SDI video input

− 7 inch 1920 x 1200 (Native) pixels 500 Nits Brightness

− 3G/HD-SDI & HDMI Video Inputs/Outputs with Cross Conversion

− Test Functions – YRGB Column Display, Waveform and Vectorscope, Peaking, False Color, and Histogram

19P-T Prompter Monitor (D17)

− 19” Premium display

− Custom heat and power control

− Composite video input

− 3G/HD/SDI video input

− DC Power Distribution for powering Accessories

− Optional Network Interface for IP feeds (D18)


Power Pan (Q40)

− 90-pound payload

− 370-degree rotation range

− Absolute Positioning

− Local control with 3 position memory

− Network Control with expanded functions and 100 memory presets

− Optional Tethered Control (Q51)


Power Pedestal (Q50)

− 90-pound payload

− 19-inch elevation range

− Absolute Positioning

− Local control with 3 position memory

− Built-in Power Distribution (AC & DC)

− Optional Pan Bar Kit (Q52)

− Optional Tethered Control (Q51)

− Network Control with expanded functions and 100 memory presets
